10 Sequence Diagrams
Jonas Jødestøl Haugland edited this page 2022-04-28 15:53:54 +02:00
Table of Contents

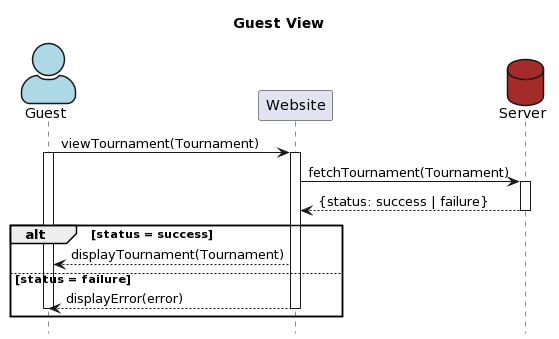

Guest Sequence Diagram

sequenceDiagramGuest

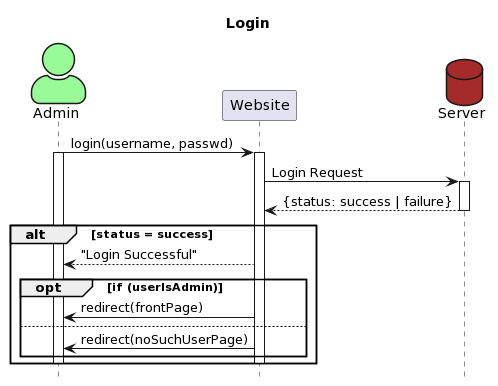

Login Sequence Diagram

sequenceDiagramLogin

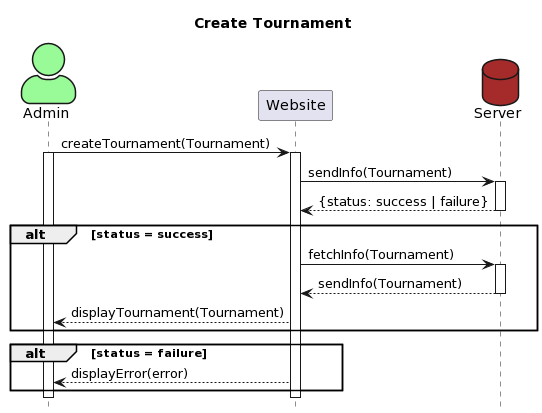

Create Tournament Sequence Diagram

sequenceDiagramCreate

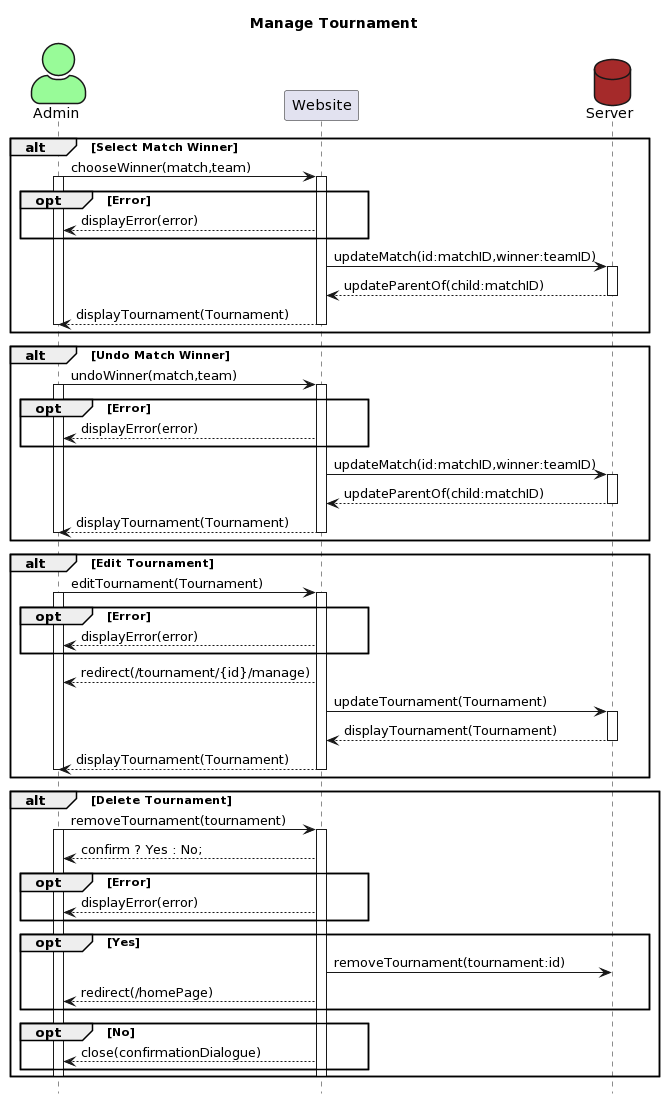

Manage Tournament Sequence Diagram

sequenceDiagramManageTournament

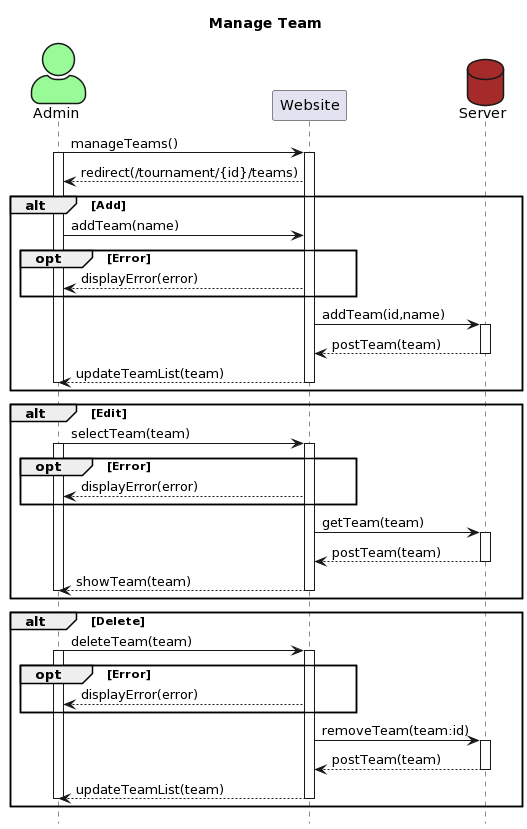

Manage Team Sequence Diagram

sequenceDiagramManageTeam

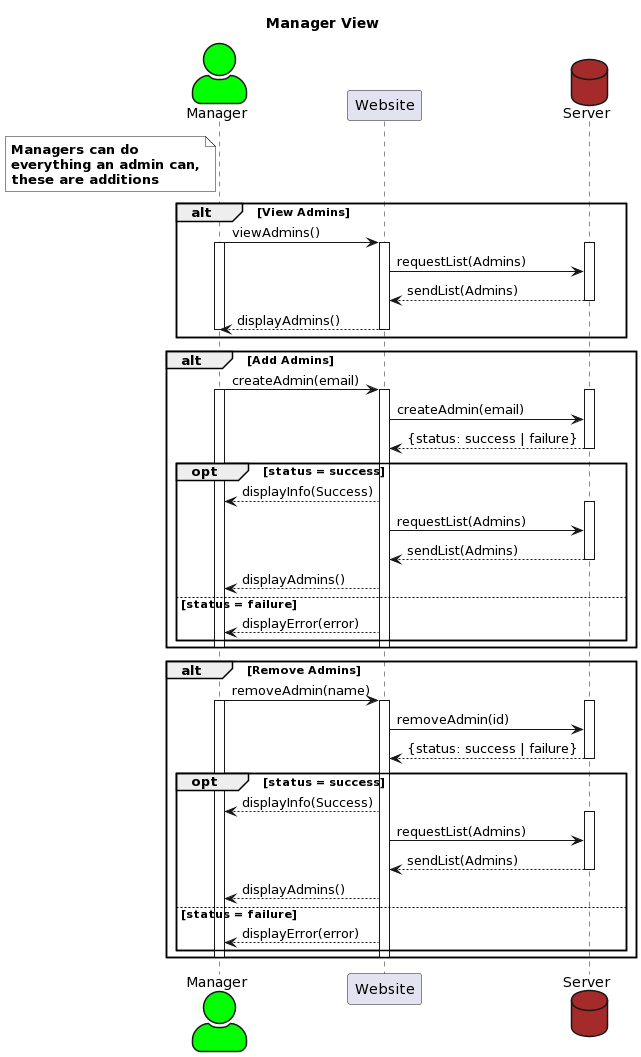

Sequence Diagram for Manager View and Actions

sequenceDiagramManager
